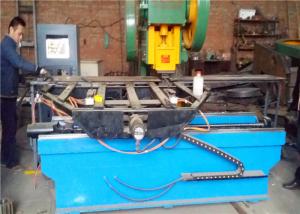

High Precision Perforated Mesh Machine 0.95Mpa Sheet Metal Perforating Machine

  • 1
  • 2
  • 3

Brand Name : DIAOZHUO

Model Number : DZ-CKW250 DZ-CKW2000 DZ-CKW1500

Certification : CE ISO9001

Place of Origin : HEBEI, CHINA

MOQ : 1set

Payment Terms : L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10 sets per month

Delivery Time : 20-30 days

Packaging Details : with water-proof film covered or at customer's request

Price : variable

engineer : available to service machinery overseas

speed : 220 mesh/min

material : steel cast

the precision of hole-punching : 0.1mm

Contact Now

Sheet metal perforating mesh machine thickness max 20mm punching machine


Specifications of Punching Press:

The biggest size of working space 1250*2500mm

The biggest thickness of working part 20mm

The precision of the hole punching ±0.1mm

The axis number-controlling Four (X.Y.T.C)

The precision of repetition cocalization ±0.1mm

The power of the main electrical machinery 11kw

Power Source 30KVA

pressure 0.95Mpa

Consumption Quantity 0.1m3/min

The outside size(L*W*H): 5500*2560*3625 mm

The weight of the machine: 15.5T


the advantage of our machines:

1. Welded steel plate framework with high intensity of machine body.

2. The middle crankshaft adopts special rolling bearing,and the precision roller bearing is adopted for front and rear side.

3. Combined pneumatic friction clutch and brake.

4. Equipped with hydraulic overload protecting device.

5. Eight-side precision needle roller guide rail.

6. Pitman screw locked up with oil pressure.

7. Electric shut height adjustment with digital display.

8. Equipped with lifting balance cylinder device.

9. Duplex valves imported from Japan.

10. Control by PLC with international brand.

11. Buttons,indicators,AC contactors,air circuit breakers and other controlling devices are imported from international brand.

12. Electronic cam device with intelligent top dead center stop function and several safety function.

Optional air cushion device,NC feeding machine,light curtain and inverter with international brand to fulfill stroke adjustment.
